Coastal & Harbour Survey Services with RGES Vessels
At RGES, we provide highly efficient coastal, harbour, and river survey solutions using versatile service vessels designed to thrive in conditions where larger ships may struggle. Our vessels are built for precision and agility, making them the ideal choice for challenging projects.
Why Choose RGES Vessels?
While larger vessels can be limited by difficult conditions, RGES vessels excel in near-shore, coastal areas where other vessels can’t operate. Our vessels continue to perform safely in swells, even when larger ships are port-bound due to weather. The key difference is in our vessels’ operational flexibility, allowing us to work in conditions where survey equipment becomes the limiting factor, not the vessel itself.

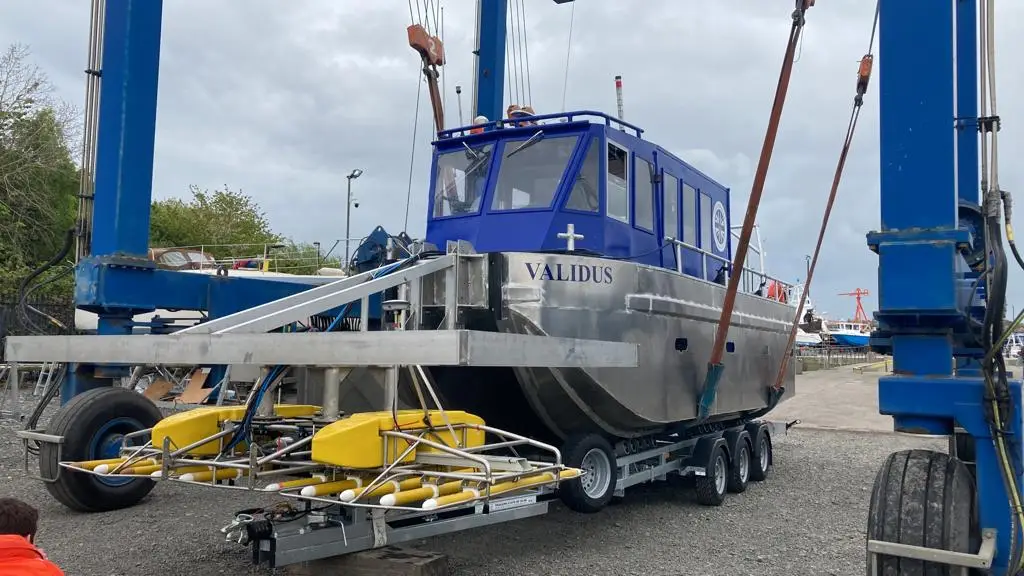

Name – Validus
Length – 7.8m
Beam – 2.5m
Weight – 2,250KG
OBM’s – Twin 115hp, 4 stroke
Winch – 4,000kg, A Frame 250kg
Carrying Capacity – 1000kg, Plus 6 crew
Coded – Cat 3
Hull Material – Aluminum
Speed – 12 Cruise – 20 knots Top speed
Diesel heater
Toilet, 2 x Survey Tables, 3 chairs, Electrics, Generator
Electronics – AIS, Raymarine 3D Chirp imagery, Simrad Precise Nav system, Raymarine Radar, Chart plotter & Radar, Starlink, 2 x Survey Swing Arm
Survey equipment – 3D Chirp, TVG, Side Scan Sonar, USBL, Magnetometer, Sub Bottom Profiler, Bathymetric, Camera sledge

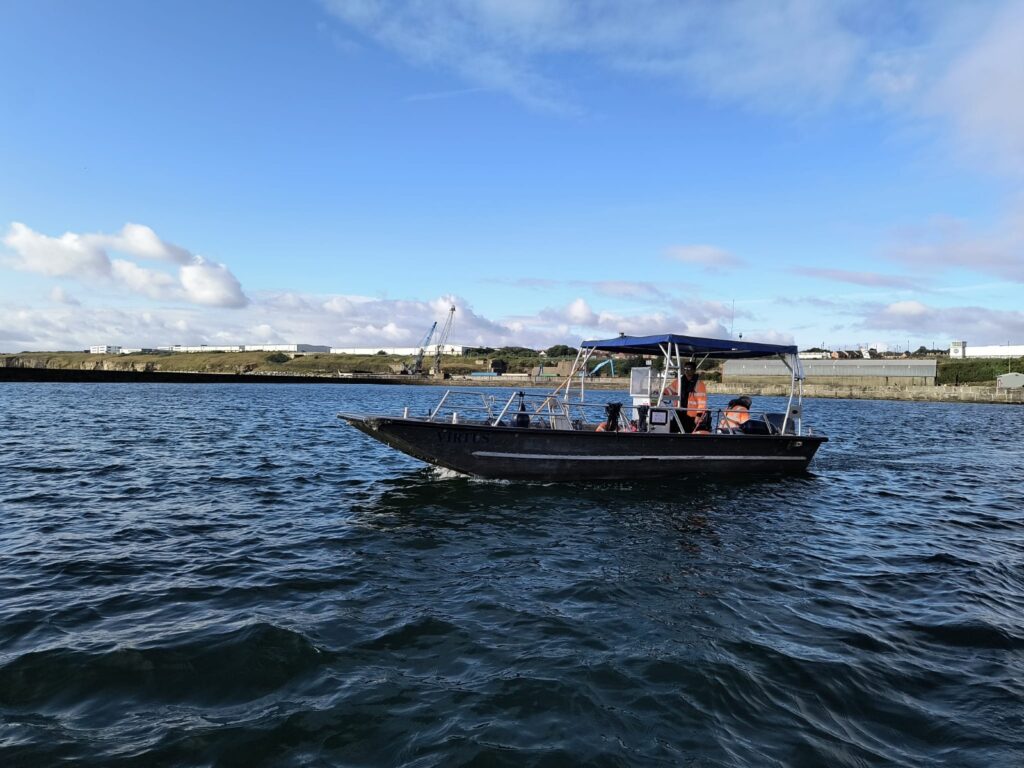

Name – Fortis
Length – 7m
OBM’s – Twin 40hp Mercury 4 strokes, Prop Guards
Beam – 2.6m
Carrying capacity – 1000kg, Plus 6 crew
Draft – 0.4m
Speed 14-20 knots
Coded – Cat 4
Weight – 1050kg
Material – Aluminum, 2 x Side Scan Arms
Push bars, Electrics, Generator
Electronics – AIS, Chart plotter
Name – Virtus
Length – 7m
OBM’s – 1 x 80HP Yamaha 4 Stroke, Prop guard
Beam – 2.6m
Carrying capacity – 1,000kgs Plus 4 crew
Draft – 0.4m
Speed 14-20 knots
Coded – Cat 4, 20 miles Off shore Daylight
Weight – 1,050kg
Material – Aluminum
Electrics – Garmin chart plotter/fish finder, AIS, VHF DSC Radio Fixed & Handheld

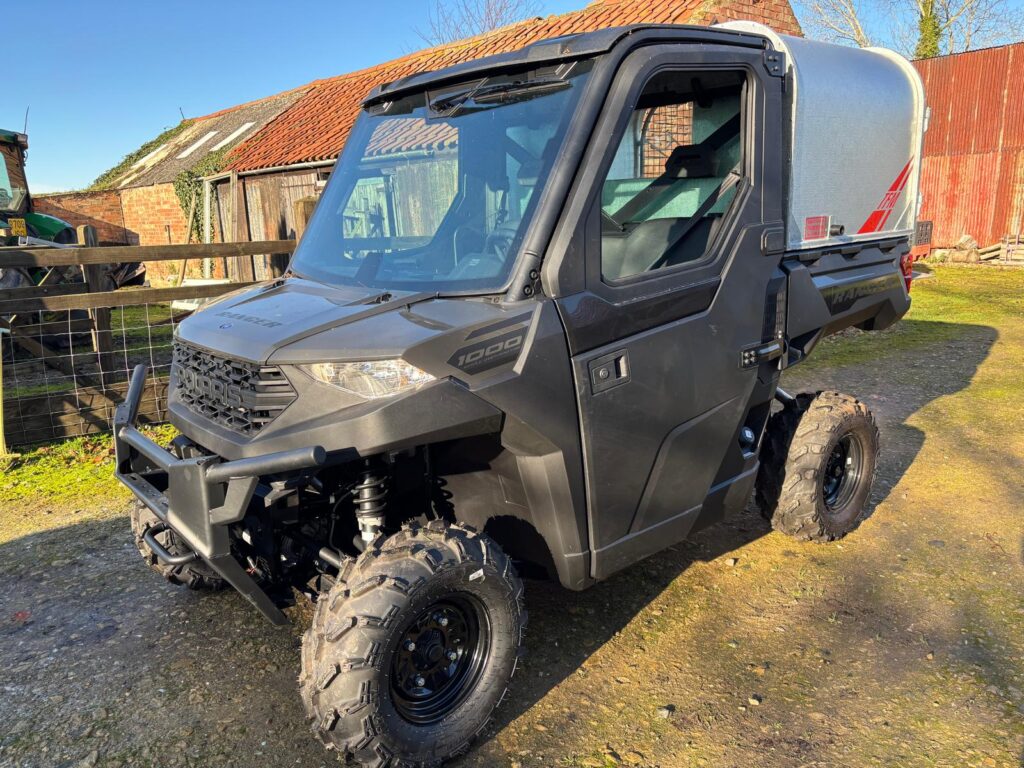

Drive – 4×4, High/Low gearbox
Engine – 1000cc, Petrol
Full cab
Tow bar
Road legal

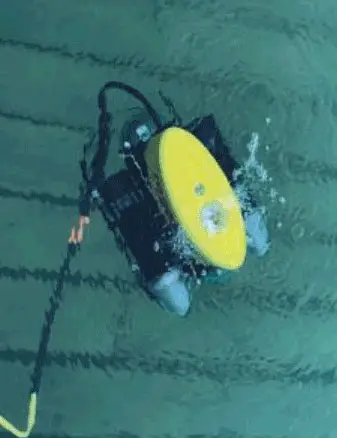

VideoRay Explorer is a submersible, Remotely Operated Vehicle (ROV) designed to take advantage of its portability and size.
Great for in water hull inspections, Searches and recovery.
Agility & Stability: Smaller vessels (under 10 meters) are more maneuverable and stable in shallow coastal and harbour areas.
Cost Efficiency: Our services are up to 80% more cost-effective than larger vessels, offering similar or greater efficiency without the higher costs.
Proven Performance: We’ve consistently outperformed larger vessels in coastal and river operations, demonstrating our vessels’ ability to retrieve equipment safely, even in rough conditions.
A Cost-Effective Solution
RGES vessels offer a budget-friendly alternative, providing services at a fraction of the cost of larger vessels. While larger vessels may offer marginally more efficiency, our vessels achieve similar results with dramatically reduced operational costs, making them the smart choice for projects prioritizing cost-effectiveness without compromising quality.
Professional & Experienced Crew
Our skilled crew is highly trained and committed to delivering outstanding service. With a deep understanding of the challenges in coastal areas, we ensure each project is completed to the highest standards, reliably and efficiently.
